Cables are an important aspect of any industry and Havells, being India's largest manufacturer of cables and wires, produces a range of industrial cables including Multicore Cables, Low Voltage and High Voltage cables, EHV capable, Extra High Voltage Cables, etc. The cables are manufactured under eco friendly norms and are safe, reliable, fire retardant, fire resistant, lead-free & halogen free.

LT Control Cables

LT Control Cables

Manufactured at the largest integrated cables unit in India. The LT control cable range from Havells is used in various applications such as power supply to equipment panels, boards, and distribution boards. These cables are not only reliable but also offer safety and durability. The materials used for manufacturing them are non-hazardous and therefore are eco-friendly.

Application: Cables for Power Supply to equipments, panel boards & distribution boards

Enquiry Now
LT Power Cables

LT Power Cables

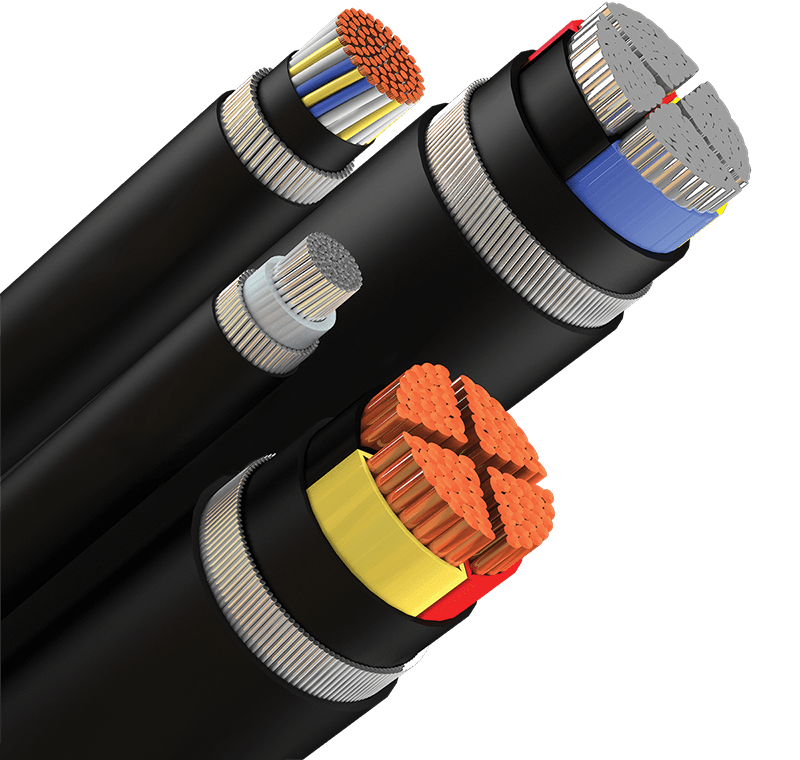

Ideal for distributing electricity to residential, commercial and industrial units the Low Tension Power Cables are made with high quality copper and aluminum to offer superior conductivity. Available in Single core and multi core configurations, they are safe, non hazardous, lead and cadmium-free and are manufactured at the largest integrated cables unit in India.

Application: Cables for Power Supply to Residential, Commercial & Industrial units

Enquiry Now
Fire Survival Cables

Fire Survival Cables

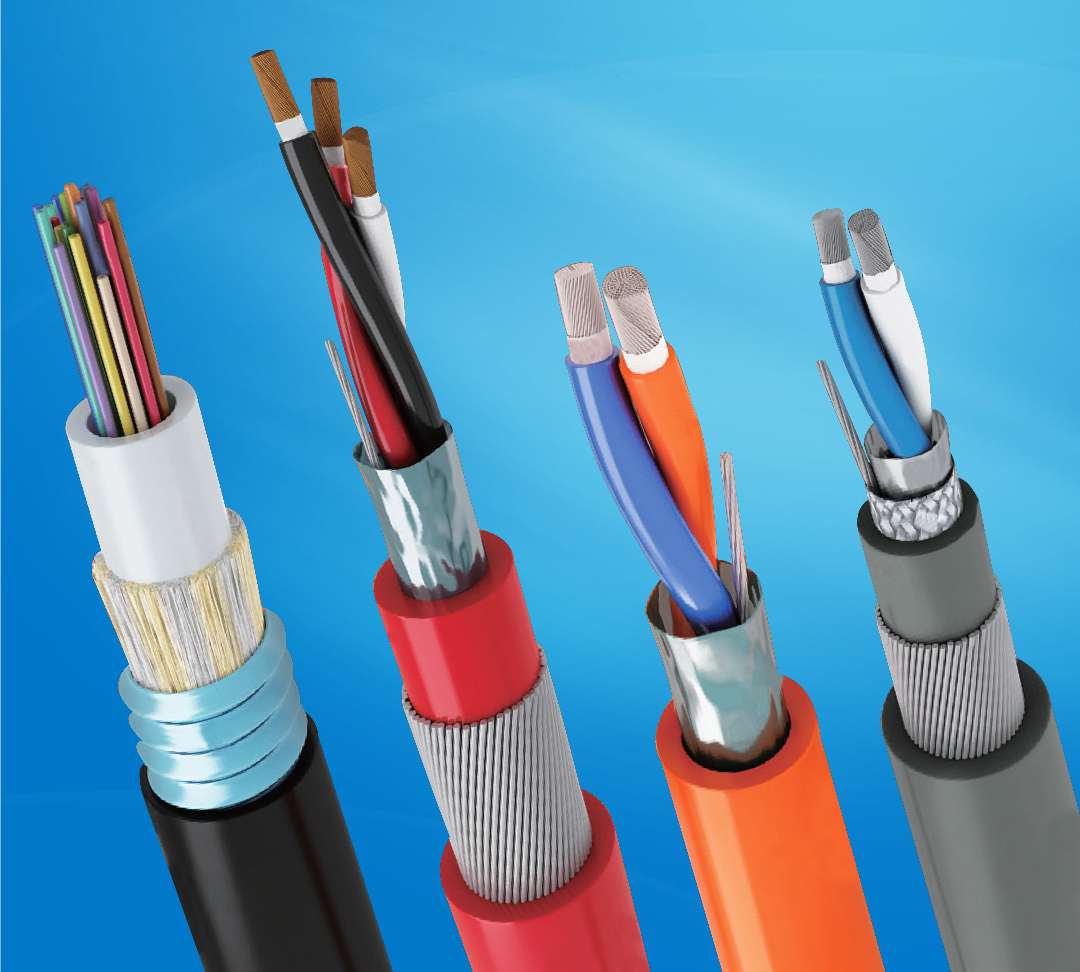

High safety Fire Survival Cables for fire-prone areas also known as CIRCUIT INTEGRITY CABLES, they are designed to sustain high temperatures for a defined minimum period of time under direct fire. They find applications in Hazard prone areas where people and equipment are exposed to the threat of fire, like airports, thermal power plants, metro rail projects, rail terminals etc. With qualities that will prevent them from overheating, they can withstand temperatures of up to 650 °C, 750 °C and 950 °C as per various conditions of operation and applications.

Application: Fire Survival Cables for fire hazardous/ prone areas

Enquiry Now
HT Power Cables

HT Power Cables

Heavy Duty XLPE Power cables for Power Generation available in copper cable conductor and aluminium cable conductor.

Application: Heavy Duty XLPE Power cables for Power Generation / Distribution

Enquiry Now
 LV POWER CABLES

LV POWER CABLES

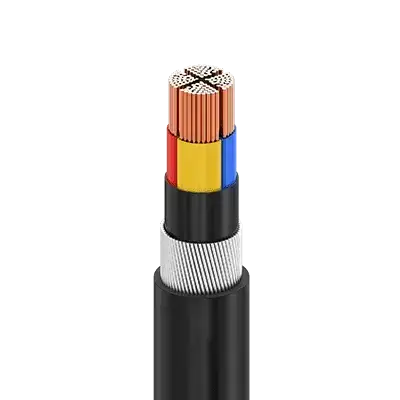

Copper/Aluminium solid/stranded conductor, XLPE insulated, cores laid up, PVC inner sheathed, unarmoured/armoured, extruded PVC/PE /LSZH sheathed cables with rated voltage 0.6/1.0 kV from 1.5 mm² to 1000 mm² in 1/2/3/3.5/4 Cores confirming to BS 5467/BS 6724/IEC 60502-1

Enquiry Now
MV Power Cables

MV Power Cables

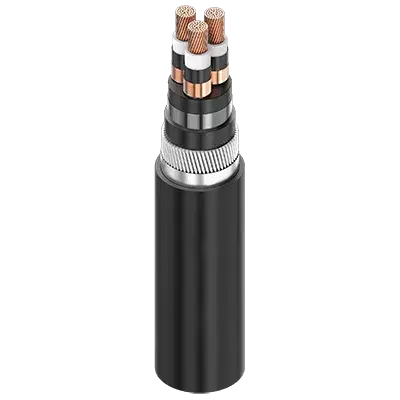

3.3Kv to 33Kv Grade- (BASEC/KEMA/CPRl/ERDA tested) three core Copper / Aluminium Conductor,Conductor screened with extruded semi-conducting compound, XLPE Insulated, insulation screened with semiconducting compound in combination with copper tape (0.3 KA for One Sec.), PVC ST2/FR/FRLSH/LSZH Inner Sheathed armoured/ GI Steel (Aluminium in case of single core) FLAT/Round Armoured and Overall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm, above cables can be supplied with lead sheath whenever required.

Enquiry Now
 MV SIngle Core Power Cables

MV SIngle Core Power Cables

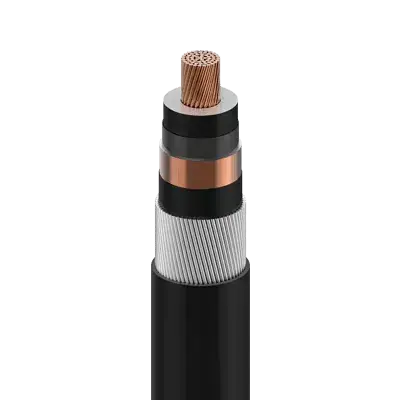

3.3kv to 33kv grade-(BASEC/KEMA/CPRl/ERDA Tested) Single core copper /Aluminium Conductor, Conductor screened with extruded semi-conducting compound (11KV E & above), XLPE Insulated, Insulation screened with semiconducting compound (11KV E & above) in combination with copper tape , Unarmoured/ Aluminium Flat Strip / Round Wire Armoured and verall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm above cables can be supplied with lead sheath whenever required.

Enquiry Now
Co Axial Cables - Industrial Flexible Wires & Cables

Co Axial Cables - Industrial Flexible Wires & Cables

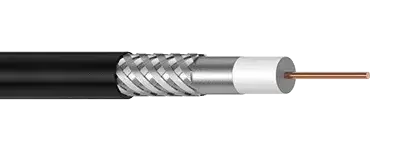

Range : RG 59 F, RG 6 F & RG 11 F with copper/ CCS conductor, nitrogen gas injected polyethylene foam insulated, bonded aluminium foil laminated, al-alloy braided, water resistant jelly flooded, weather resistant PVC sheathed, 75Ω low loss co-axial cable for DTH and CATV application.

Enquiry Now
HR-FRLSH - Industrial Flexible Wires & Cables

HR-FRLSH - Industrial Flexible Wires & Cables

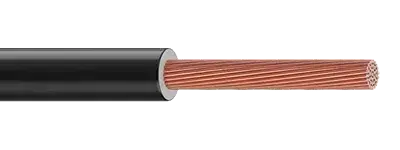

Single core multi-stranded copper conductor, HR-FRLSH PVC insulated wires with heat resistant, excellent flame retardant and low smoke properties.

Enquiry Now
HR-Heat Retardant - Industrial Flexible Wires & Cables

HR-Heat Retardant - Industrial Flexible Wires & Cables

Single core multi-stranded copper conductor, HR PVC insulated wire with heat resistant and normal flame retardant properties.

Enquiry Now
